PSM-002KPDW-F

PSM-002KPDW-F

Differential bipolar pressure sensor for air and non-corrosive gases with piezoresistive technology: 'silicon on glass'

More details...

Availability : Available

PSM-002KPDW-F

72,13 € tax excl.

  • Ask for more quantity order
  • Product Request:


    PSM-002KPDW-F

    PSM-002KPDW-F

    Differential bipolar pressure sensor for air and non-corrosive gases with piezoresistive technology: 'silicon on glass'

    do not include special characters

    * Required fields

    Cancel

    • Measuring Range: -/+ 2 kPa
    • Pressure Type: Differential
    • Supply Voltage: 5.0 Vdc
    • Mounting Type: DIP

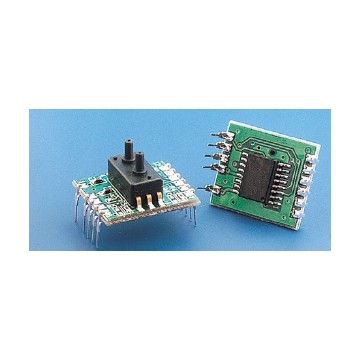

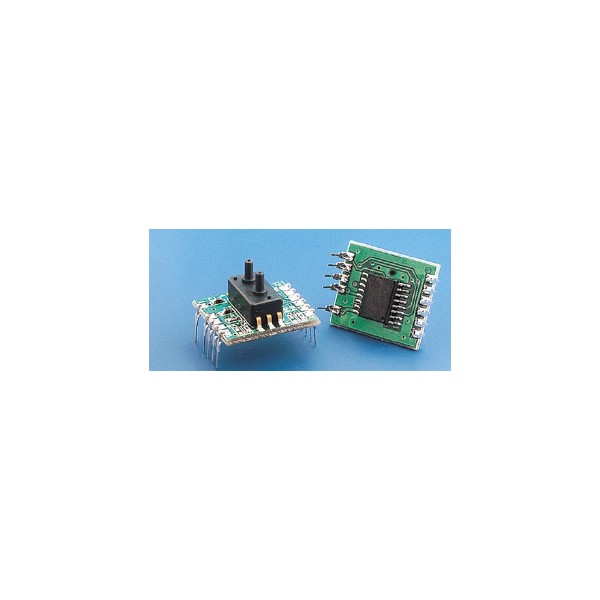

    Differential bipolar pressure sensor for air and non-corrosive gases with piezoresistive technology: 'silicon on glass'

    Range: -2 +2 kPa

    DIP sensor mounted on board with ASIC integrated , DIP mounting board 12pin

    Size 23x20mm card, port length 5mm, 5Vdc power supply with amplifier circuit and integrated temperature compensation

    output voltage 0.5-4.5Vdc.
