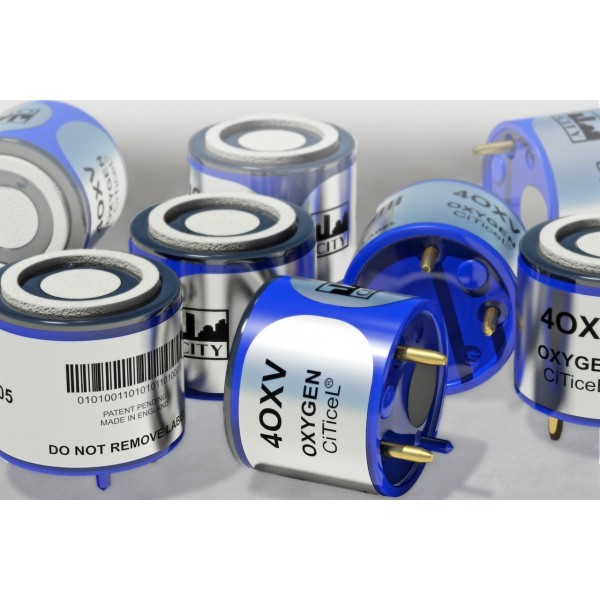

4OX-V
City Technology: Electrochemical Cell for the measurement of Oxygen
Availability : This product is no longer in stock
4OX-V
Technology: Electrochemical
Measurement Range: 1-25% vol. O2
Maximum Overload: 30% vol. O2
Output Signal: 0.10 ± 0.02 mA in Air
Response Time (T90): <15 Seconds
Zero Current (Offset): <0.6% vol. O2
Linearity: Can be considered linear in many cases.
See Operating Principles (OP-02) for further details.
Recommended Load Resistor: 100 Ω
Casing Material: ABS
Weight: <16 g
Orientation Sensitivity: <0.2% vol. O2 equivalent
Operating Temperature Range: -20°C to +50°C (up to 3 months continuous across RH range)
Recommended Storage Temp: 0°C to 20°C
Thermal Transient (Temp. plunge +22°C to -20°C): <23.5% vol. O2
Operating Pressure Range: Atmospheric ± 20%
Pressure Coefficient: <0.02% signal/mbar
Pressure Transient (60 cm H2O step change): <200% signal change
Relative Humidity Range: (at 0°C to 20°C)
Continuous: 5 to 95%RH non-condensing
Short Term: 0 to 99%RH non-condensing
Long Term Output Drift: <2% signal/month
Typically <5% over operating life
Expected Operating Life: Minimum 24 months in air
Storage Life: 6 months in original packaging
