CRZ-2005-100-1/3B

CRZ-2005-100-1/3B

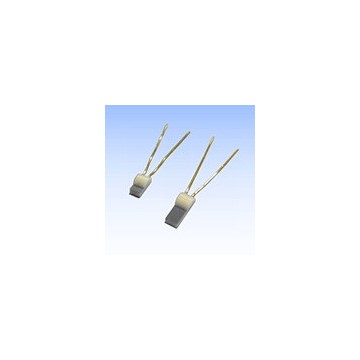

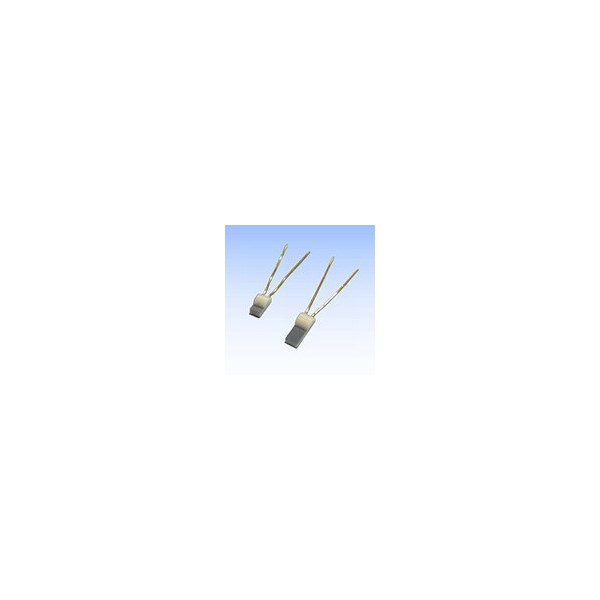

Thin film temperature element, PT100, temperature range from -70°C to +500°C, dimension 2.0 x 5.0mm, class 1/3B

More details...

Availability : Available

CRZ-2005-100-1/3B

2,90 € tax incl.

This product is not sold individually. You must select at least 10 quantity for this product.

  • Ask for more quantity order
  • Product Request:


    CRZ-2005-100-1/3B

    CRZ-2005-100-1/3B

    Thin film temperature element, PT100, temperature range from -70°C to +500°C, dimension 2.0 x 5.0mm, class 1/3B

    do not include special characters

    * Required fields

    Cancel

    • Dimensions 2.0 x 5.0mm
    • Tecnology Thin Film
    • Class 1/3B
    • Range di temperatura 1/3B: -20 a +150°C
    • Resistive Value Pt 100

    The epoch-making CRZ Platinum Thin Film RTD elements have been successfully developed using the best technologies available, such as the sputtering technology laying thin films, the dry-etching methods, the ultra fine photolithography and the resistance value adjustment by digital trimming for the accurate resistance. The completely automated manufacturing process makes possible to offer products at reasonable prices as well as meeting IEC and JIS Standards. The elements are provided after inspecting and printing the actual resistance value at 0°C.
