Absolute pressure sensor, amplified, 15-115KPa, SMD, 2.5%, 3Vdc
Availability : Available
X3AM-115KPASR-02
Absolute pressure sensor, amplified, 15-115KPa, SMD, 2.5%, 3Vdc
Availability : Available
X3AM-115KPASR-02

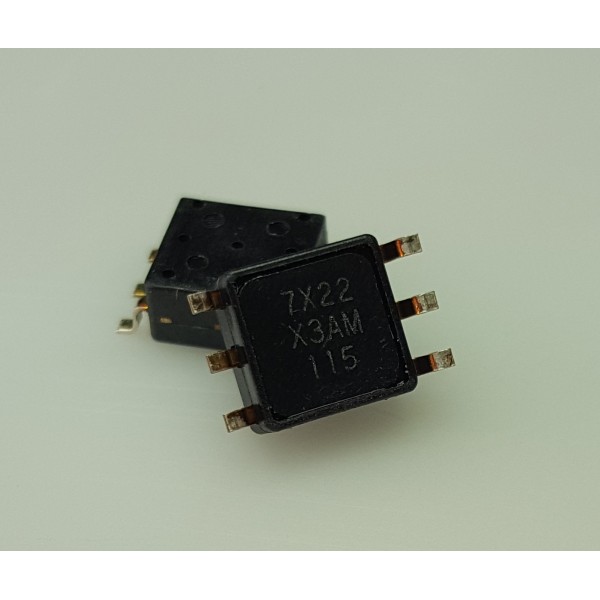

Absolute pressure sensor for non corrosive air and gas with piezoresistive technology
Range 15-115KPa
SMD case with 6pins, dimensions 7x7mm, no pressure port
supply voltage 3Vdc with integrated amplification and temperature compensation circuits
output voltage: 0.5-2Vdc, accuracy: 2.5% FS
