AH31R-200KG

AH31R-200KG

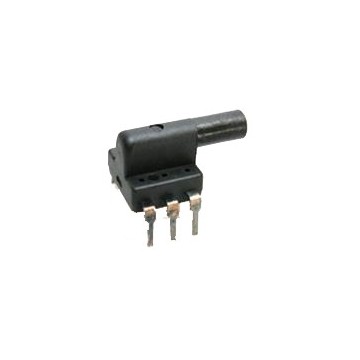

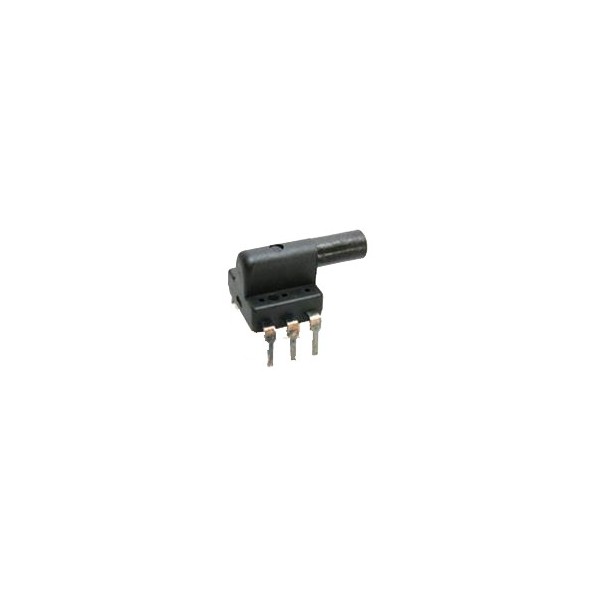

Pressure Sensor DIP mounting type, ASIC integrated with temperature compensation and digital output

More details...

Availability : This product is no longer in stock

AH31R-200KG

30,20 € tax incl.

  • Ask for more quantity order

    • Product Request:

    AH31R-200KG

    AH31R-200KG

    Pressure Sensor DIP mounting type, ASIC integrated with temperature compensation and digital output

    do not include special characters

    * Required fields

    Cancel


    Notify me when available
    • Supply Voltage 3.3 Vdc
    • Measuring Range 200 kPa
    • Pressure port Horizontal
    • Pressure Type Gauge
    • Accuracy +/- 1.5% FS
    • Pressure port lenght 6 mm
    • Temperature Compensation 0-60°C
    • Orientamento pin Opposto
    Piezoresistive Fujikura pressure sensor DIP mounting type.

    Signal generated by the sensible element is amplified, temperature compensated, calibrated internally and provided on output pin as analog signal by its integrated circuit.
